Nav tree scroll performance A/B (typology icons)

This page records a numeric A/B investigation of left-rail scroll smoothness on the DevCentr docs hub (tip 7d69041, nav-typology solids / SoftNav seamlessness), comparing typology icons ON vs OFF and several cheap variants against the shallower HCI-Nerdz control site.

Verdict (short)

  • Typology <svg><use> icons are a real paint cost when many are visible (expand-all: Paint ~99 ms with icons vs ~36 ms without; Layerize ~123 ms vs ~38 ms).

  • On a normal deep Tools page only ~19 of 246 icons are visible; the other ~227 sit in collapsed ancestors. In that default shape, icon removal trims scroll TaskDuration only modestly (~98 ms → ~77 ms in headless CDP) and does not close the gap to HCI.

  • The dominant HCI gap is forest size / DOM, not icons alone: DevCentr ~360 nav-item`s / ~1963 DOM nodes / 45 nested `ul.nav-list vs HCI ~38 items / ~361 nodes / 8 lists.

  • SoftNav + debounced sessionStorage scroll persist is weak as a scroll-jank cause at these sizes.

  • Nested horizontal overflow is already defeated (overflow-x: hidden on the SoftNav rail); forcing overflow-x: auto did not recreate a clear headless regression.

  • Production icons stay ON. Hub helper gains a temporary kill-switch site.keys.nav_typology_icons: 'false' for rebuild A/B; no permanent icon removal shipped.

Method

What was measured

Surface Detail

Local tip build

Existing Antora output under build/site (hub tip 7d69041). Served on 127.0.0.1 static HTTP.

Live Pages

https://docs.devcentr.org/tools/agent-rules/ — same typology icon count as local (246 <use> / 492 nav-typology-icon class hits in HTML). SoftNav + site-nav-column-scroll.css present; nav flash hide (visibility:hidden / blank tree) not present (tip seamlessness already live).

HCI control

https://hci-nerdz.github.io/docs/hci-nerdz/index.html — older shallower zero-typology layout.

Browser

Chrome via Puppeteer 25 headless on Ryan’s Windows machine (CHROME system install). Not a substitute for interactive GPU scrolling on a laptop panel — treated as directional lab numbers.

Harness

scripts/nav-scroll-ab-bench.mjs (rAF scrollTop + CDP Performance.getMetrics deltas) and scripts/nav-scroll-cost-bench.mjs (wheel Input.dispatchMouseEvent under CDP Tracing + forced layout/style microbenches). Artifacts: build/nav-scroll-ab/.

Variants

Id Mutation

A icons ON

As built (<svg class="nav-typology-icon"><use href="…nav-typology.svg#…">).

B icons removed

Runtime querySelectorAll('svg.nav-typology-icon').forEach(remove) — approximates site.keys.nav_typology_icons: 'false'.

C display:none

Icons remain in DOM; not painted.

C2 CSS marks

Remove SVG; inject small ::before color squares on typed rows.

D SoftNav/scroll persist off

Clone scroll panel (drop listeners); stub siteNavTreeSaveScroll / SoftNav; block site-nav-tree:* sessionStorage writes.

E expand-all

Every li.nav-item gets is-active (max visible icons / tallest scrollport).

E−svg expand-all, no SVG

Expand-all then remove icons.

F force overflow-x: auto

Re-introduce nested horizontal scrollport + nowrap labels.

G strip filter/shadow on nav chrome

box-shadow/filter/backdrop-filter none on nav descendants.

Test page for DevCentr: deep Tools / Agent Rules (/tools/agent-rules/) with the full forest rail.

Structural counts (load)

Page nav-items typology SVG visible SVG collapsed SVG DOM nodes (page) nested ul.nav-list

Local Tools/agent-rules A

360

246

19

227

1963

45

Local B (icons removed)

360

0

0

0

1471

45

Local home A (mostly collapsed)

360

246

2

244

1977

45

Live Tools/agent-rules A

360

246

19

227

1963

45

HCI control

38

0

0

0

361

8

Removing icons drops ~492 DOM nodes (svg + use each), matching the HTML class/use counts on tip and live.

Local A — icons on (path expanded)
Local B — icons removed

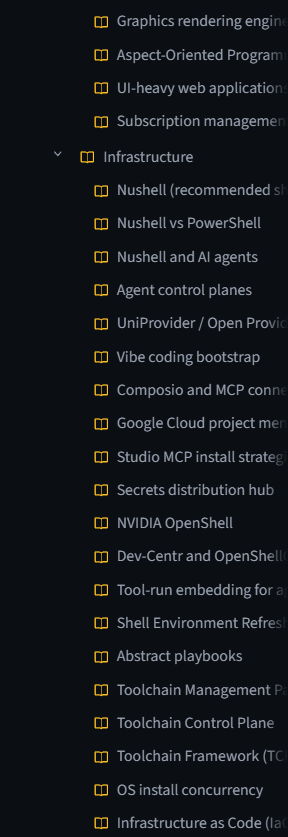

Local E — expand all (246 visible icons)
HCI control rail

Metrics tables

Scroll window (headless rAF, ~2 s, 64 px steps)

Headless frame pacing pinned near the display cadence (~144 FPS, p95 ~7 ms) for every variant — not a useful jank discriminator. Prefer CDP TaskDuration / ScriptDuration deltas during that window and the tracing table below.

Variant TaskDuration ms ScriptDuration ms SVG tot/vis DOM nodes

Local A icons ON

98.5

9.2

246/19

1963

Local B icons removed

77.5

7.9

0/0

1471

Local C display:none

83.6

8.1

246/0

1964

Local C2 CSS marks

94.6

8.8

0/0

1472

Local D SoftNav/scroll off

89.4

8.7

246/19

1963

Local E expand-all

158.0

9.0

246/246

1963

Local E2 collapse non-path

94.8

9.0

246/19

1963

Local F overflow-x auto

80.1

7.8

246/19

1964

Local G no shadow/filter

87.8

8.6

246/19

1964

Local home A (no rail scroll room)

52.1

1.1

246/2

1977

Live A

80.4

8.0

246/19

1963

Live B icons removed

82.6

8.0

0/0

1471

HCI control

48.0

1.1

0/0

361

Tracing during wheel scroll (expand stress)

When the whole forest is open, typology SVGs dominate paint/layerize:

Variant Paint ms Layerize ms GPUTask ms iconLayout×40 ms

E expand-all + icons

99.5

123.2

144.3

17.5

E expand-all, icons removed

35.9

38.0

101.7

0.1

A default path (19 visible)

~0 in selected timeline slice

Layerize ~9.8

GPUTask ~35

3.9

B default path, icons removed

~0

Layerize ~8.8

GPUTask ~29

0.1

HCI

29.9 (many small paints)

7.6

105.3

0.1

Forced flex getComputedStyle on every nav row (×10): DevCentr ~24–42 ms vs HCI ~2.7 ms — another forest-size signal independent of icons.

Debounced scroll sessionStorage writes (×400 microbench): ~0.7–3 ms total — cheap relative to paint when expanded.

Theory scorecard

Theory Verdict Evidence

Scroll lag from number of visible and/or hidden SVGs (<svg><use> per typed row)

Supported (visible) / weak (hidden-only)

Expand-all Paint/Layerize ~2.8× / 3.2× with icons. Default path: only 19 visible; TaskDuration 98 → 77 when removed. Hidden SVGs still cost ~492 DOM nodes.

Custom JS (SoftNav, scroll restore, site-nav-tree) slows middle-button / rail scroll

Weak

Disabling persist/listeners: TaskDuration 89 vs 98. Persist microbench tiny. SoftNav is about navigation swaps, not continuous wheel cost.

Nested horizontal scroll in nav causes jank

Rejected (current CSS) / historical

Measured overflow-x: hidden on the SoftNav panel. nav-typology.css + site-nav-column-scroll.css already clip; forcing overflow-x: auto did not raise TaskDuration in this harness.

Deep forest / many nodes vs HCI shallower zero-SVG layout

Supported (primary)

360 vs 38 items; 1963 vs 361 nodes; flex-row style reads ~10×; HCI TaskDuration ~48 vs DevCentr ~80–98 even after icon removal.

SoftNav flash / nav wipe

Already fixed on tip; live matches

No visibility:hidden blanking in tip/live HTML/CSS comments document seamlessness. Live ships SoftNav + column-scroll CSS with the same icon counts as local tip.

Page-change slowness vs DeepWiki

Out of scope (not timed here)

Scroll-focused run. SoftNav transition: 'none' already aims at DeepWiki-like swaps; measure separately if still perceived slow.

DOM / nested <ul> thrash without icons

Supported

B still has 360 items / 45 lists; TaskDuration remains ~77 vs HCI 48.

overflow + sticky column compositing

Weak / needed for correctness

Sticky + panel scrollport is the intentional fix for coupled page scroll; not singled out as jank vs HCI in these traces.

Scroll listener / sessionStorage on scroll

Weak

Debounced 100 ms; microbench negligible; D variant small delta.

filter / box-shadow on toggles / current-page

Weak

G variant TaskDuration 88 vs 98; brand CSS already avoids heavy nav shadows for tiles elsewhere.

Font/icon flex layout per row

Supported as forest amplifier

Every row is display:flex with gap; ×10 style reads 24–42 ms on DevCentr vs 2.7 ms HCI.

CSS ::before / mask marks vs <svg><use> vs no icons

CSS marks ≈ no-icon DOM when collapsed; SVG hurts when expanded

C2 TaskDuration ~95 (noise vs A). Expand stress: SVG paint is the clear loser vs no icons.

Recommendations

  1. Keep typology icons in production for the default collapsed/path-expanded forest — the UX win is large; the default-path scroll delta is modest.

  2. Prefer lazy / visible-only icons if expand-all (or readers who open many roots) feels janky:

    • emit SVG only for is-active ancestry + visible rows, or

    • swap to CSS-only marks for off-screen / collapsed subtrees, or

    • keep a single sprite but avoid per-row <use> until expand (JS enhance).

  3. Treat forest depth / node count as the main HCI gap: curation (site-nav-tree include allowlist), fewer anonymous wrappers, and avoiding “expand everything” are higher leverage than deleting icons.

  4. Keep horizontal overflow clipped; do not reintroduce nested overflow-x: auto on the SoftNav rail.

  5. Leave SoftNav + scroll restore on; optimize only if profiling shows listener time on real GPU wheels (not seen as primary here).

  6. Hub A/B rebuild flag (temporary):

site:
  keys:
    nav_typology_diataxis: 'true'
    # temporary lab kill-switch — omit or any value other than 'false' keeps icons
    nav_typology_icons: 'false'

Implemented in supplemental-ui/helpers/nav-typology-icon.js (typologyIconsEnabled). Default remains icons on.

Limits (honest)

  • Headless Chrome rAF scroll hit a ~144 FPS ceiling; it under-reports interactive middle-button / trackpad jank on real GPUs.

  • Runtime DOM removal approximates a rebuild with nav_typology_icons: 'false' but is not identical to a clean Antora pass (listener identity, SoftNav region wiring).

  • Tracing Layout counters were often 0 in selected categories while Paint/Layerize/GPUTask still moved — read the paint/layerize columns for expand stress.

  • Live Pages matched tip icon counts for this run; if Pages lags a future tip, re-check before blaming icons.
